In order to meet these demands, Entrust turned to Advanced Machine & Engineering, a longtime associate based in Rockford, Illinois, to assist with the necessary components required to accommodate the load and to provide stability and repositioning. The relationship between both companies has been steady for more than five years, especially in the area of new spindle components and worm gear assemblies.
For the power drawbar, Entrust sought a high-quality, precision model that featured bolt-on reliability, 80 bar max (1,160 psi) coolant pressure, steep taper air-blast and standard integral position sensors for feedback. The company also needed the features to be configurable.

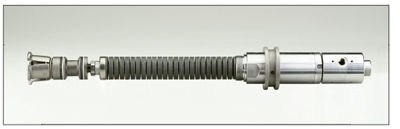

Based on previous automotive experience, Entrust selected an OTT-Jakob power drawbar with rotary union and steep taper gripper. OTT-Jakob, a German company distributed in North America by Advanced Machine & Engineering, recommended the modular ES series drawbar with a high pull force of 23 kN (5,169 lbs.).
It helped that the ES series had a reputation as a quality product in the world machine tool market, according to the company’s press release, based largely on the strength of the tools being used by both Mercedes and BMW.

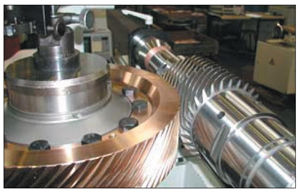

For the worm gear assembly, Entrust once again turned to Advanced Machine & Engineering for a solution. After looking at the available products, the suggestion was to utilize the Zahnradfertigung OTT patented worm gear design with a gear and a worm shaft that are adjusted to minimize backlash.
After investigating other worm gear designs, Entrust selected this particular design because it had the best backlash scenario for the application, namely large-area, deep-pocket moldmaking. Due to the nature of the application, a DIN standard Class 3 set of worm gears was required. Advanced Machine supplied Class 2 worm gears at no additional charge to the customer.
“A conventional solution would not work here for this precision application and the OTT worm gear set was more appropriate,” says Dan Lapp, vice president of sales at Advanced Machine & Engineering. Lapp went on to explain how the typical machine tool worm gear on the market often has a split worm, spring-loaded to compensate for backlash errors. With the OTT split worm design, the left side of the worm gear features a worm shaft while a hollow worm engages the shaft from the right. By the accurate positioning of one worm half relative to the other, the backlash can be changed.
“The Unisig engineers worked with Advanced Machine & Engineering as a provider of these critical, precision mechanical components on our USC50 mold machining center,” says Anthony Fettig, COO at Entrust Tool & Design. “The OTT worm gear set, OTT-Jakob power drawbar and Speith components (locknuts, sleeves, bushings) have performed very well in the application, and the technical support from Advanced Machine was thorough and usually immediate.”
